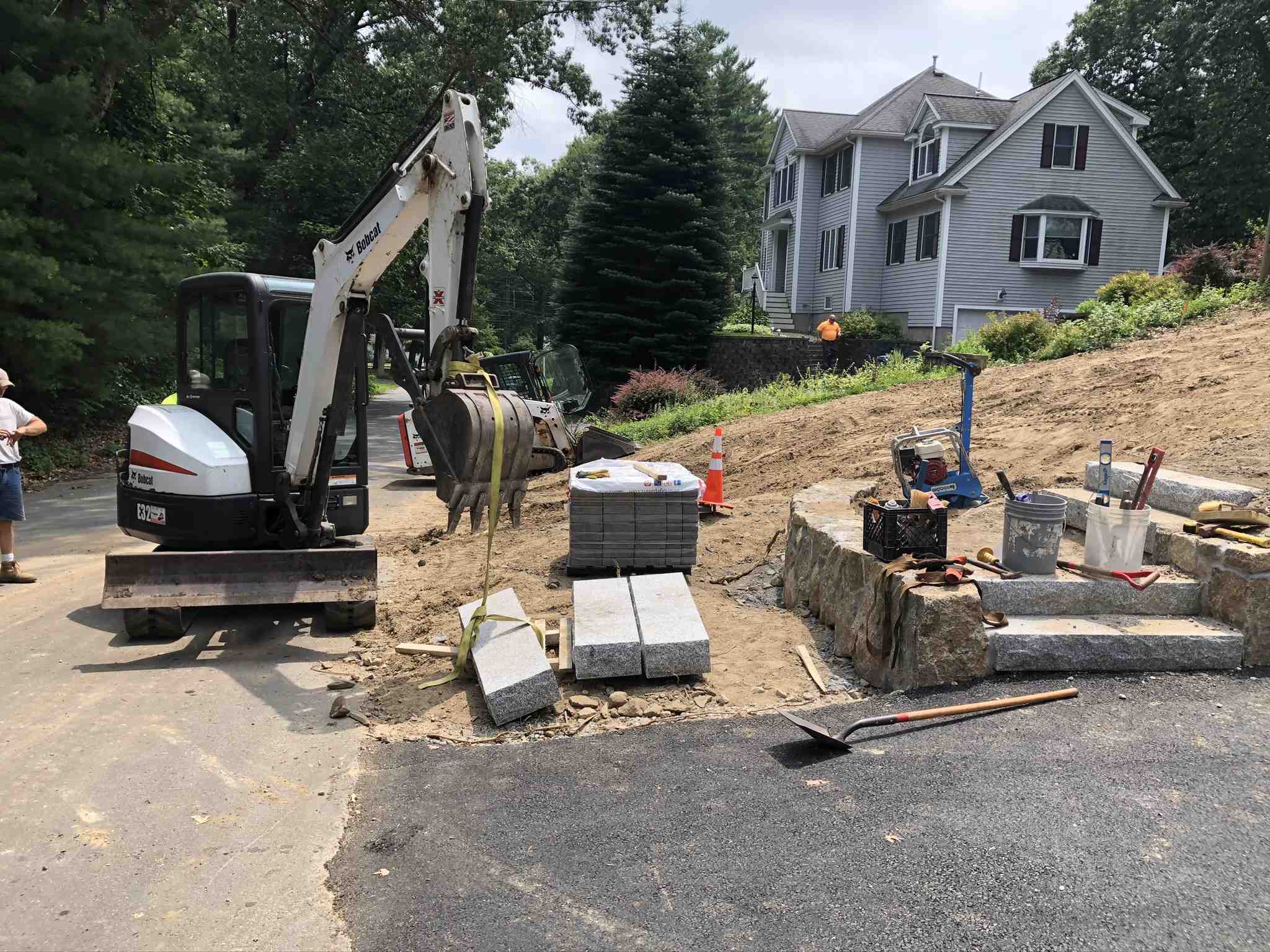

Why Drainage Is the Most Important Part of Any Retaining Wall

Drainage wall construction is the process of building a retaining wall with a fully integrated water management system — so the wall stays stable for decades instead of failing in just a few years.

Here is what proper drainage wall construction involves:

1. Gravel backfill – At least 12 inches of ¾-inch crushed stone directly behind the wall
2. Perforated drain pipe – 4-inch pipe at the base, wrapped in geotextile fabric, sloped to an outlet
3. Geotextile filter fabric – Separates native soil from the drainage stone to prevent clogging
4. Weep holes – Spaced every 6 to 10 feet on walls taller than 4 feet
5. Daylight outlet – A visible exit point where water can flow freely away from the wall
6. Geogrid reinforcement – Required for walls over 4 feet to resist soil pressure

Most people assume a retaining wall fails because of bad materials or sloppy craftsmanship. The real culprit is almost always water. When water gets trapped behind a wall with nowhere to go, it builds up pressure — called hydrostatic pressure — that pushes against the wall from the inside. Over time, that pressure causes leaning, bulging, cracking, and eventually collapse. It doesn’t matter if the wall is built from premium stone or poured concrete. Without proper drainage, failure is just a matter of time.

This is especially true in the Merrimack Valley, where clay-heavy soils hold water instead of letting it drain naturally. A wall built in those conditions without aggressive drainage isn’t going to last.

I’m Scott McLeod, owner of McLeod Landscaping, and after more than 30 years building and repairing retaining walls across Massachusetts, drainage wall construction is something I’ve seen done right — and done very wrong. In this guide, I’ll walk you through exactly how to get it right, from planning and materials to installation and long-term maintenance.

Drainage Wall Construction Basics: Why Water Control Determines Wall Performance

To understand why water control is so vital, we have to look at the physics of soil. When native soil behind a retaining wall becomes saturated, it undergoes a massive increase in weight and lateral load. Un-drained water creates hydrostatic pressure that increases by approximately 9.8 kN/m² for every 1.0 meter of depth. If a wall is holding back saturated, undrained soil, the total lateral force pushing against the structure can easily double or triple compared to dry, well-drained conditions.

This extreme pressure leads directly to structural failures:

• Erosion and Soil Washout: Water migrating through cracks carries fine soil particles with it, creating hollow voids behind the wall.
• Settlement and Tilting: Saturated foundation soils lose their bearing capacity, causing the wall’s leveling pad to sink or tilt forward.
• Freeze-Thaw Damage: In places like Tewksbury, Chelmsford, and Westford, wet soil freezes and expands during the winter. This “frost heave” exerts immense outward pressure, cracking blocks and shifting heavy stone.

Soil type dictates how aggressively we must design the drainage system. Clay-heavy soils (common in areas like Billerica and Wilmington) have low permeability and retain water like a sponge. Saturated clay generates high hydrostatic pressure and drains very slowly. Sandy soils (found in parts of Concord and Carlisle) are naturally free-draining, but still require a dedicated path for water to escape to prevent erosion.

When planning a project, wall height determines whether you are building a gravity wall or a reinforced wall.

• Gravity walls rely purely on their own mass (weight) to hold back the soil.
• Reinforced walls use layers of geogrid that extend back into the soil mass to tie the wall and soil together.

In Massachusetts, the four-foot threshold is the gold standard: any wall over four feet tall faces exponentially higher soil pressures and requires geogrid reinforcement and a formal engineered design. Skipping this step guarantees eventual failure. For a deeper dive into how water behaves behind these structures, take a look at our comprehensive retaining wall drainage guide.

The Essential Drainage Components Every Retaining Wall Needs

Every robust retaining wall system relies on a combination of five core drainage components working together:

1. Gravel Backfill (Drainage Aggregate): This is a minimum 12-inch wide vertical zone of clean, angular, ¾-inch crushed stone placed directly behind the wall face. It must have high permeability to allow water to drop straight down to the drain pipe rather than building pressure against the wall blocks. Avoid rounded pea gravel or sand, which can shift or retain moisture.
2. Perforated Drain Pipe (Subsoil Drain): Positioned at the very bottom of the drainage aggregate zone, a 4-inch perforated pipe (rigid PVC or flexible PE) collects the falling water. It must be installed with the perforations facing downward and sloped at a minimum 1% gradient toward an outlet.
3. Geotextile Filter Fabric: A non-woven, needle-punched polypropylene fabric (minimum 200 g/m²) must line the boundary between the gravel backfill and the native soil. This fabric acts as a separation barrier, allowing water to pass through while keeping fine clay and silt particles from clogging the gravel drainage zone.
4. Weep Holes: For solid masonry, poured concrete, or tall segmental block walls, weep holes (typically 2 to 4 inches in diameter) are placed along the bottom course at 6-to-10-foot intervals. They provide an immediate exit path for water through the wall face.
5. Low-Permeability Soil Cap: An 8-inch layer of compacted clay or low-permeability topsoil is placed at the very top of the wall. This cap minimizes the amount of surface rainwater that can infiltrate the drainage zone in the first place, directing it to run off away from the wall crest.

To learn more about how these components are integrated into structural concrete, check out the Retaining Wall Drainage Requirements – Guide – Concretemetric.com.

How Drainage and Reinforcement Work Together

Drainage and reinforcement are not separate systems; they function as a single, unified structure. In walls over four feet, geogrid layers extend horizontally into the backfill zone. If water saturates this reinforced soil volume, the friction between the geogrid and the soil drops dramatically, causing the grid to slip and the wall to fail.

Proper base preparation is essential. We excavate a deep foundation trench, backfill it with compactable gravel base material, and compact it to 95% Standard Proctor density. This stable base prevents differential settlement. When backfilling, we compact the soil in 8-inch lifts, ensuring that the geogrid remains taut and flat. By managing both soil reinforcement and water drainage simultaneously, we control settlement and ensure the wall can handle heavy surcharge loads (such as driveways or sloped lawns). You can read more about how we calculate these loads in our retaining wall design guide.

Drainage Wall Construction Materials Checklist

Before starting your drainage wall construction project, ensure you have the following materials on site:

• ¾-Inch Clean Crushed Stone: For the 12-inch drainage aggregate zone.
• Non-Woven Geotextile Fabric: Minimum 200 g/m² weight to wrap the aggregate.
• 4-Inch Perforated Drain Pipe: Rigid PVC (preferred for cold climates) or corrugated flexible pipe.
• Solid PVC Outlet Pipe: To transition from perforated pipe to the daylight exit point.
• Outlet Protection: A 100 mm PVC cap with drain slots or a rodent guard to keep pests out.
• Compactable Base Material: Grushed gravel or dense-grade aggregate for the leveling pad.
• Segmental Wall Blocks or Stone: High-strength, low-absorption concrete units (minimum 3,000 psi).
• Capstones & Construction Adhesive: To seal the top of the wall and secure the caps.
• Prefabricated Drainage Mat: (Optional but highly recommended for tight spaces) Such as Driwall™ Prefabricated Composite Drain 10/025-2 | Keene Building Products, which eliminates the need for thick aggregate layers in tight, below-grade assemblies.

Note on Material Costs: Based on average internet data only, broad industry material and professional installation costs for a retaining wall may range from about $25 to $150+ per square foot, depending on wall height, access, drainage needs, engineering requirements, and material selection. These figures are general online averages and are not actual costs, estimates, or pricing for McLeod Landscaping projects.

Step-by-Step Drainage Wall Construction for Residential and Commercial Walls

Building a durable retaining wall requires a methodical approach to excavation, base preparation, pipe placement, and compaction. Let’s break down the process step-by-step. For a complete overview of the physical building process, refer to our retaining wall installation guide.

Step 1: Plan the Water Before You Build the Wall

Before a single shovel touches the dirt, you must map out where water currently flows and where it will exit. Identify all localized water sources: roof downspouts, natural slope runoff, irrigation systems, and surface swales.

To manage surface water:

• Install uphill swales to intercept sheet flow before it reaches the wall crest.
• Route downspouts directly into solid-walled underground pipes that bypass the wall entirely.
• Plan a clear path for the drain pipe to outlet (“daylight”) at a lower elevation.

Ensure your plan complies with local regulations, such as the Drainage Standard Details | Concord, MA guidelines, which outline municipal requirements for storm system connections and erosion control in our service area.

Step 2: Install the Base, Drain Pipe, and Gravel Zone Correctly

Once the foundation trench is excavated and a 4-to-6-inch gravel leveling pad is compacted, lay the first course of blocks.

• Place the 4-inch perforated drain pipe directly behind the first course of block, sitting on top of the compacted base.
• Ensure the pipe has a minimum 1% downward slope toward the outlet.
• Crucial: Place the pipe with the holes facing down. This allows water rising from the base to enter the pipe and flow away immediately, rather than forcing the water level to rise 4 inches before draining.
• Fill the cores of the blocks and a 12-inch zone directly behind the blocks with ¾-inch clean crushed stone.

For detailed engineering cross-sections of pipe placement, consult the Proper Water Management with Allan Block Retaining Walls manual.

Step 3: Separate Soil From Stone With Geotextile Fabric

To prevent the clean crushed stone from clogging over time, we line the excavation trench with non-woven geotextile fabric.

• Lay the fabric against the back of the retaining wall block, sweep it across the bottom of the trench (under the drain pipe), and pull it up the face of the excavated native soil slope.
• Leave enough excess fabric at the top to fold over the completed gravel drainage zone later.
• Overlap any joints in the fabric by a minimum of 12 to 18 inches to prevent clay or silt from migrating into the stone envelope.

Step 4: Backfill, Compact, and Grade Without Trapping Water

With the pipe and fabric in place, begin backfilling behind the 12-inch gravel zone with select infill soil.

• Backfill in maximum 8-inch lifts (layers).
• Compact each lift to 95% Standard Proctor density.
• The Consolidation Zone: Within 3 feet of the back face of the wall, do not use heavy commercial compaction equipment. This can push the wall face out of alignment. Instead, use hand-operated plate compactors, making at least two passes per lift.
• At the end of each work day, grade the soil behind the wall to a temporary slope away from the wall face to prevent overnight rain from pooling.
• Finish the top of the wall with an 8-inch low-permeability soil cap sloped at a minimum 2% pitch away from the wall crest.

For a deeper look at compaction tolerances and moisture-density relationships, refer to the Allan Block Retaining Wall Specification Manual.

Drainage Wall Construction Mistakes That Cause Failure

Avoid these common field errors that lead to premature wall failure:

• Skipping the Drain Pipe Outlet: A drain pipe that doesn’t daylight or connect to a storm drain simply acts as a storage tank, trapping water behind the wall.
• Using Native Clay for Backfill: Backfilling the entire space behind the wall with native clay or topsoil traps water and increases hydrostatic pressure.
• Forgetting the Geotextile Fabric: Without fabric, clay particles quickly migrate into the crushed stone, clogging the void spaces and rendering the drainage system useless.
• Eyeballing the Grading: Estimating slopes by eye often results in flat spots or reverse grades that trap water. Always verify slopes with a laser level or string line.
• Ignoring Downspouts: Allowing a roof downspout to discharge directly behind a retaining wall will quickly overwhelm any drainage system.

If you suspect your current wall is suffering from these issues, read our guide on retaining wall repair warning signs to learn how to identify structural distress before it’s too late.

Handling Drainage Pipes, Inlets, Piles, and Other Obstructions Behind Walls

In commercial, municipal, and complex residential projects, retaining walls often conflict with existing or planned infrastructure. Drainage inlets, catch basins, utility lines, and bridge abutment piles frequently run directly through the reinforced soil mass behind the wall face. Managing these conflicts requires careful coordination and specialized design techniques.

Common Obstructions and How They Affect Wall Performance

When a drainage structure or structural pile is placed behind a retaining wall, it interrupts the continuous layers of geogrid reinforcement. This creates several structural challenges:

• Reduced Reinforcement Area: Cutting or diverting geogrid around a pipe reduces the overall tensile strength of the soil mass.
• Localized Load Paths: Rigid structures like concrete catch basins or bridge piles introduce concentrated loads that the wall face was not originally designed to support.
• Compaction Difficulties: It is incredibly difficult to achieve 95% compaction in the tight spaces directly surrounding a large pipe or pile, increasing the risk of localized settlement and wall panel distortion.

For detailed engineering drawings of how these zones are laid out, you can view the standard MSE wall drainage detail sheet.

Best Positioning: Keep Drainage Structures Outside the Reinforced Soil Zone When Possible

The simplest and most cost-effective way to handle obstructions is to avoid them entirely. During the design phase, coordinate with civil and structural engineers to locate drainage inlets, catch basins, and deep utilities beyond the free end of the soil reinforcement (the geogrid zone).

For long walls with longitudinal drainage runs, use transverse exit pipes to route water out through the wall face at regular intervals, rather than running long pipes parallel to the wall within the reinforced soil mass.

Accommodating Pipes and Inlets Within the Reinforced Soil Volume

When a drainage inlet or pipe must reside within the reinforced zone, the wall design must adapt.

• Pipe Sleeves: For pipes crossing perpendicularly through the wall face, install rigid sleeves during block or panel placement to prevent the pipe from resting directly on the wall units.
• Intermediate Reinforcement: If a geogrid layer must be cut to accommodate a pipe, install additional, shorter layers of geogrid directly above and below the obstruction to transfer the loads to adjacent, uninterrupted zones.

Vertical Skewing of Soil Reinforcements Around Obstructions

If a pipe or utility line conflicts with a layer of soil reinforcement, AASHTO Section 11.10.10.4 allows for the vertical skewing of reinforcements.

• Maximum Skew Angle: Soil reinforcement can be skewed up to a maximum of 15 degrees from the horizontal without special design calculations.
• Engineered Skew: Skew angles up to 30 degrees are permissible but require detailed engineering calculations to verify connection capacity.
• AASHTO Limits: The maximum vertical spacing between soil reinforcement layers must never exceed 33 inches, and vertical skewing is generally limited to pipes with an inside diameter of 24 inches or less.

When Backup Panels or Steel Angles Make Sense

If a large drainage inlet conflicts with multiple levels of soil reinforcement behind a single column of precast wall panels, vertical skewing may not be possible. In these cases, we use structural steel angles or concrete backup panels to bridge the gap.

A 10-foot steel angle can be mechanically connected to the adjacent, unobstructed panels, allowing the lateral loads from the obstructed panel to be transferred safely across the gap. This maintains the structural integrity of the wall face without requiring geogrid connections directly behind the obstruction. For standard structural details on these connections, see the COMMON WALL engineering manual.

Bridge Abutment Piles Behind Retaining Walls

Bridge abutments often require driving heavy H-piles or drilling concrete caissons directly behind Mechanically Stabilized Earth (MSE) walls.

To manage this safely:

• Clearance: Maintain a minimum clearance of 18 inches between the back face of the wall panels and the front face of the pile.
• Routing Reinforcement: Route the geogrid or steel reinforcing straps smoothly around the piles. During pile driving, install structural sleeves around the piles to isolate them from the surrounding backfill, preventing downward drag forces from transferring to the wall as the backfill settles.

Comparing Wall Types for Obstruction Tolerance

Different retaining wall systems offer varying levels of flexibility when dealing with subsoil obstructions:

Seasonal Drainage Design, Maintenance, and Troubleshooting

In Massachusetts, our weather runs the gamut from freezing winter blizzards to heavy spring rains and autumn leaf drops. Each season presents unique challenges for retaining wall drainage. If you are looking for general yard drainage tips that can help protect your entire property, check out our guide on 15 DIY yard drainage methods.

Designing for Freeze-Thaw and Cold-Climate Drainage

During New England winters, water trapped behind a wall freezes, creating “ice lenses” that expand with incredible force. This expansion causes block spalling (surface flaking) and pushes blocks out of alignment.

To prevent freeze-thaw damage:

• Use Smooth-Walled Outlet Pipes: Smooth PVC outlet pipes are far less prone to internal ice blockages than corrugated pipes, which trap water in their ridges.
• Extend Outlets to Daylight: Ensure all drain outlets terminate well beyond the wall face, in areas where they will not be buried by plowed snow or frozen over by runoff.
• Install Drainage Membranes: A vertical drainage membrane placed against the back of the wall blocks provides a clear path for water to drain even when the surrounding backfill is partially frozen.

If you are planning a project in Andover or surrounding towns, it is crucial to work with a team that understands local soil conditions and municipal building codes to ensure your wall is built to last.

Managing Heavy Rain, Roof Runoff, Slopes, and Sprinklers

Heavy rainstorms and active irrigation systems can quickly saturate the soil behind your wall.

• Downspout Extensions: Never allow downspouts to empty near the top of a retaining wall. Extend them at least 10 feet past the wall or tie them into a solid underground pipe.
• Uphill Cut-off Drains: For walls built at the bottom of steep slopes, install a French drain or concrete swale uphill from the wall crest to intercept sheet runoff.
• Sprinkler Positioning: Adjust sprinkler heads to prevent overspray onto the wall face or the soil cap directly behind it.

For properties in Billerica and surrounding areas, managing slope runoff is a critical step in preventing soil erosion and protecting your hardscape investment.

Warning Signs of Poor Drainage in an Existing Wall

Keep an eye out for these early warning signs of drainage failure:

• Efflorescence: A white, powdery substance on the wall face. It is caused by mineral salts left behind as water forces its way through the concrete blocks.
• Bulging or Leaning: Any visible movement or tilting of the wall blocks.
• Water Seeping Through Joints: Water actively dripping or running out of dry joints between blocks long after the rain has stopped.
• Soil Washout or Sinkholes: Voids or depressions forming in the lawn directly behind the wall cap.

If you notice these signs on your property, addressing them early can prevent a complete structural failure and save thousands of dollars in reconstruction costs.

Fixing Drainage Problems After the Wall Is Built

If your wall is showing signs of poor drainage, you don’t always have to tear it down and start over.

Here are a few ways to retrofit drainage:

• Pipe Flushing: Use a high-pressure sewer jetter to clear dirt, roots, and debris from clogged drain lines.
• Weep Hole Retrofitting: Carefully core-drill new weep holes along the base of concrete or solid masonry walls to relieve hydrostatic pressure.
• French Drain Retrofit: Excavate a shallow trench directly behind the wall cap, line it with fabric, fill it with stone, and install a new drain pipe to intercept surface water before it sinks deeper into the soil.

For severe cases involving structural shifting, a partial excavation and rebuild may be necessary. In these situations, it is best to consult an experienced retaining wall contractor to assess the wall’s structural integrity.

Frequently Asked Questions About Drainage Wall Construction

Do short retaining walls still need drainage?

Yes. Even short walls (under 4 feet) can fail if they are holding back clay-heavy soils that become saturated. While they do not require geogrid reinforcement, installing a simple gravel drainage zone and a perforated drain pipe is highly recommended to prevent shifting, tilting, and unsightly efflorescence.

Where should the retaining wall drain pipe outlet go?

The drain pipe must outlet to a visible “daylight” point at a lower elevation, away from the wall foundation. If a daylight point is not available on your property, the pipe can be connected to a municipal storm sewer system (where permitted by local code) or routed to a properly sized dry well or catch basin.

When does a retaining wall need engineering or geogrid?

In Massachusetts, any retaining wall over 4 feet in height requires geogrid reinforcement and a formal engineering plan to obtain a building permit. Additionally, walls of any height that support a “surcharge” load — such as a driveway, parking lot, swimming pool, or steep slope above the wall — require professional engineering. For more details on the installation process, view our retaining wall installation page.

Conclusion

When it comes to drainage wall construction, what you can’t see is what determines the lifespan of your wall. Beautiful stone and perfect mortar joints mean nothing if water is trapped behind them, slowly building up thousands of pounds of hydrostatic pressure.

By investing in proper planning, using clean crushed stone backfill, installing perforated pipes with the holes facing down, and protecting the system with high-quality geotextile fabric, you can ensure your retaining wall remains stable and beautiful for generations.

If you are planning a retaining wall project for your home or commercial property in Tewksbury, Andover, Concord, or anywhere else in the Merrimack Valley, don’t leave the drainage to chance. Our team at McLeod Landscaping has over 30 years of local experience building walls that stand the test of time. Schedule retaining wall drainage help with us today, and let’s make sure your next wall stays high and dry!
